ACE Laser Compact 1313 2.0 R

• The machine frame is made of a rigid steel weldment, ensuring production-related stress on the material is eliminated
• The gantry is an aluminum die-cast construction with low weight, high rigidity, and servo-drives on both sides for excellent dynamics
• The linear guides on all axes require minimal maintenance and are designed for long-lasting precision and high cutting speeds
• High-quality preloaded ball drives on all axes ensure above-average positioning accuracy
• A central lubrication system supplies lubricant to all guide components, simplifying maintenance and extending machine life
• The cutting system is fully enclosed to protect operators and the environment
• A safety glass window in the door allows direct monitoring of the cutting process

Control

• The powerful PC-based control is easy to operate via an application-specific user interface
• A technology database includes cutting parameters and pre-set cycles for various metals
• The efficient processing of all cutting jobs is further supported by user-friendly software for the selection of process parameters
• Solenoid and proportional valves regulate the gas pressures (set in the control) during the cutting process

Nesting Software

• The Cypcut software provides all functions needed for the machining of cutting contours, and displays the current operating status
• Automatic nesting saves much time, allows custom adjustments and ensures minimal material waste
• The software includes predefined nesting patterns that cover a wide variety of practical applications

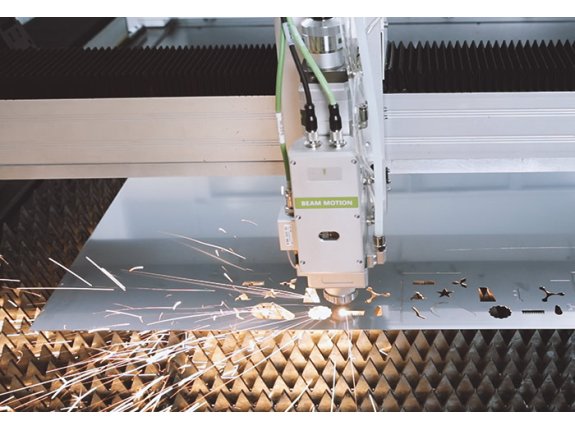

Cutting head

• The proven RayTools cutter head features an integrated collision guard, automatic focus positioning, and height control
• Focus lenses can automatically change the position in the range of 25 mm (+10 ~ -10 mm) with an adjustment accuracy of 0.05 mm
• The laser beam focus continuously adjusts itself based on material conditions during program execution
• The drawer-type lens holder allows for quick and easy replacement of protective lenses

Laser Sources

• ACE Laser Compact R models are equipped with powerful Raycus laser sources
• Raycus laser sources are known for their high reliability, electro-optical conversion efficiency at high energy density and wide modulation frequency
• Low-maintenance beam guide is provided by a flexible fiberoptic cable and ensures long tool life
