Water-Jet B 3080 - 3 axis bridge type design with Beckhoff CNC controller and integrated CAM software Contronest
Totally enclosed moving units to protect against ingress of water and dust

Totally enclosed moving units to protect against ingress of water and dust

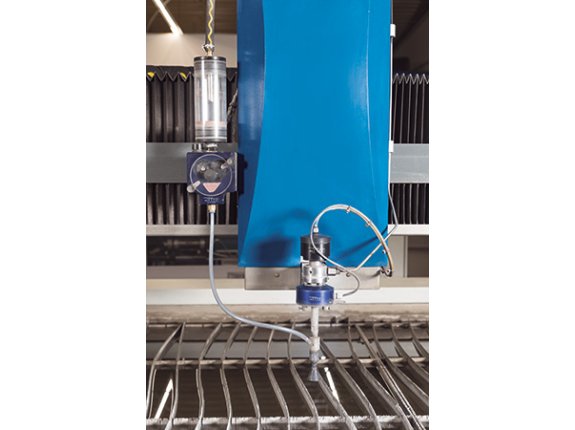

Cutter head and abrasives system are optimally adapted for the high-pressure systemBFT high-pressure pump with ALLFI cutter head and abrasives system (shown)KMT high-pressure pump with ACTIVE IDEII/PRO and KMT FEEDLINE

Cutter head and abrasives system are optimally adapted for the high-pressure systemBFT high-pressure pump with ALLFI cutter head and abrasives system (shown)KMT high-pressure pump with ACTIVE IDEII/PRO and KMT FEEDLINE

Water-Jet B 3080 - 3 axis bridge type design with Beckhoff CNC controller and integrated CAM software Contronest
Totally enclosed moving units to protect against ingress of water and dust
Cutter head and abrasives system are optimally adapted for the high-pressure systemBFT high-pressure pump with ALLFI cutter head and abrasives system (shown)KMT high-pressure pump with ACTIVE IDEII/PRO and KMT FEEDLINE

Water-Jet B 3080

SKU : 166747

The machines of the Water-Jet B series cover a wide range of cutting areas. The cutting systems are designed in a portal design with a gantry drive. Depending on requirements and application, Water-Jet systems can be offered with additional equipment options. The modern control from Beckhoff with Panasonic drives and the CAM software Contranest is easy to operate and together with the economical pressure intensifier pump from the renowned manufacturer BFT, opens up new perspectives in terms of performance and price.

Working area
Cutting range 3050 mm x 8050 mm
Table load capacity 1500 kg/m2
Travels
Travel Z-axis 200 mm
Cutting length / Travel Y-axis 8050 mm
Cutting width / Travel X-axis 3050 mm
Rapid feed
Rapid feed X-, Y-, Z- axis 20000 mm/min
Feed
Work feed 0 mm/min - 20000 mm/min
Accuracies
Positioning accuracies ± 0,06 mm
Repeatability ± 0,05 mm
Measures and weights
Overall dimensions (length x width x height)-height 4,45 m x 9 m x 2,4 m
Weight without water 10500 kg

  • Very rigid dual-drive machine bridge
  • Rigid frame construction (sides are made of stress-free annealed and milled monoblocks, which are fastened with pins during machine setup)
  • High-quality linear guides on all axes
  • Ground and hardened helical gears on Y- and -X axes, plus high-quality preloaded ball screws on Z- axis
  • Servo-motor drive on X- / Y- / Z- axis
  • Electronically monitored central lubrication system
  • Stand-alone cutting table with high load capacity
  • Exchangeable support grid with galvanized (standard) or stainless steel (option) slats
  • The standard laser pointer simplifies workpiece alignment on the support table for optimized sheet metal utilization
  • The abrasive sand is held in a 250 kg storage container and transferred automatically via air pressure to a dosing unit

Control BECKHOFF CX5130

  • The CX5130 has an Intel Atom® multicore processor with 1.75 GHz, real multi-core technology in the segment of compact embedded PCs
  • Two independent, Gigabit-capable Ethernet interfaces as well as four USB 2.0 and one DVI-I interfaces are available
  • The CX5130 is characterized by low power consumption and no fan
  • Powerful Contronest drives round out the powerful and reliable control package

ControNest CAM-Software

  • Easy to operate CAM software
  • ControNest was specially developed for cutting machines
  • The software includes an embedded CAM module, with which CAD drawings, nesting and material databases can be imported, which means no expensive additional CAM software is required

Separate cutting table SKU:
Separate cutting table
Separate cutting table SKU:
Support grid with galvanized slats
Support grid with galvanized slats SKU:
CONTRONEST CNC Control
CONTRONEST CNC Control SKU:
Laser pointer
Laser pointer SKU:
Abrasive tank 250 kg
Abrasive tank 250 kg SKU:
Swiveling control panel attached to the machine
Swiveling control panel attached to the machine SKU:
Electronic hand-wheel
Electronic hand-wheel SKU:
Operating manual and programming instructions
Operating manual and programming instructions SKU:
KMT Streamline SL VI, High pressure pump 3800 bar, 50HP

KMT Waterjet STREAMLINE SL-VI systems feature the latest technologies and a highly intelligent design to ensure simplified use, high reliability and user comfort.

  • The result is a highly efficient system for maximum profitability.
  • KMT STREAMLINE SL-VI water-jet pumps with 4,137 bar/60,000 psi are available in various power categories and configurations.
KMT Streamline SL VI, High pressure pump 3800 bar, 50HP SKU: 253565
KMT Streamline SL VI, High pressure pump 3800 bar, 50HP

KMT Waterjet STREAMLINE SL-VI systems feature the latest technologies and a highly intelligent design to ensure simplified use, high reliability and user comfort.

  • The result is a highly efficient system for maximum profitability.
  • KMT STREAMLINE SL-VI water-jet pumps with 4,137 bar/60,000 psi are available in various power categories and configurations.
KMT Streamline VI 60S PRO-3 High pressure pump, 6200 bar SKU: 253566
KMT Streamline VI 60S PRO-3 High pressure pump, 6200 bar

The 6.200 bar high-pressure pump offers the following advantages over conventional 4,100 bar water-jet cutting:

  • Higher cutting speeds
  • Improved cut edge quality
  • Reduced abrasives consumption
  • Increased productivity
  • Increased angular precision
  • Less delamination

Advantages of the PRO-III pressure booster:

  • The optimized design of SUPRALIFE high-pressure seals ensures a longer tool life
  • Patented pressure booster construction
  • Advanced heat treatment of seal head body
  • Outlet check valve made of titanium
  • Cylinder bushings made of stainless steel
  • Highly polished piston
Water-Jet height control with collision safety SKU: 252580
Water-Jet height control with collision safety
Hydro-Jet Light barrier 3 sides SKU: 253576
Hydro-Jet Light barrier 3 sides
Water-Jet Option Splashguard SKU: 252988
Water-Jet Option Splashguard
Water-Jet Drilling head SKU: 253577
Water-Jet Drilling head
Water quality stabilization system with contact water meter SKU: 253709
Water quality stabilization system with contact water meter
Refrigerated compressed air dryers SKU: 251090
Refrigerated compressed air dryers
  • Dew Point +3°C
  • Max. working pressure: 16 bar
  • Flow rate: 0,88 m3/min
  • Connection: 1/2"
  • Dimensions (L×W×H): 413×363×557 mm
  • Including first and second stage filters
Water-Jet Option Increase Z axis travel to 400 mm SKU: 252991
Water-Jet Option Increase Z axis travel to 400 mm
Water-Jet 3080 stainless steel cutting table and tank SKU: 252596
Water-Jet 3080 stainless steel cutting table and tank
Water-Jet 3080 < 0,02 / 0,03 Mechanic (gearbox and rack/pinion) SKU: 253575
Water-Jet 3080 < 0,02 / 0,03 Mechanic (gearbox and rack/pinion)
Water-Jet 3080 water niveau adjustment control SKU: 252588
Water-Jet 3080 water niveau adjustment control
Secondary cutting head (CNC) for same BFT pump SKU: 253602
Secondary cutting head (CNC) for same BFT pump
Igems Nest Level 2 SKU: 251448
Igems Nest Level 2
Igems Data exchange SKU: 252155
Igems Data exchange
Igems Sign Maker SKU: 251449
Igems Sign Maker
Igems Tile Maker SKU: 251450
Igems Tile Maker
Igems optical Locator SKU: 252156
Igems optical Locator
Igems Organizer SKU: 251451
Igems Organizer
Igems Floating License SKU: 251453
Igems Floating License
- abrasives tank (1000 kg) SKU: 253654
- abrasives tank (1000 kg)
  • Water level control - semi-automatic
  • Return via an overflow system
  • Feed via membrane pump - manually adjustable
High pressure pump BFT Servotron 40.37 SKU: 251225
High pressure pump BFT Servotron 40.37

No power consumption while jet is closed

  • Approximately 15% more energy effient than asynchronous motors
  • Soft start upon high-pressure pump startup and reduced power consumption
  • Infinitely variable pressure from 10 to 400 MPa for a wider spectrum of applications
  • Virtually no pulsation during jet startup - no chipping of brittle materials
  • Minimal pressure fluctuations of only ± 1% at full load - increased life of high-pressure components and improved cut quality
  • No overshoots and minimal pressure inrush when turning the water-jet on and off - protects the entire high-pressure system all the way to the cutter head
