Verturn II VDM 1250 CNC

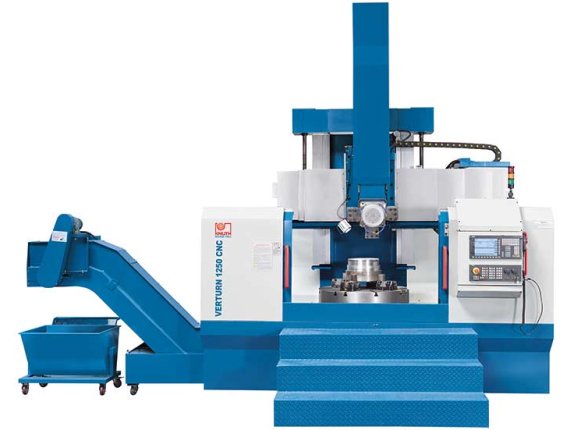

Verturn 1250 CNC is shown

Efficiency and Precision

Efficiency and Precision

Rigid and robust

Rigid and robust

Face plate with 4-station tool changer

Face plate with 4-station tool changer

Verturn II VDM 1250 CNC
Efficiency and Precision
Rigid and robust
Face plate with 4-station tool changer

Verturn II VDM 1250 CNC

SKU : 180675

This series combines the proven virtues of the VDL vertical lathes with the latest CNC technology. Workpieces with large diameters and heavy weight can be loaded and unloaded safely and quickly. In addition, the Sinumerik 828D control is an absolute powerhouse. The automatic 4-station tool changer guarantees stability and the large 4-jaw face plate chuck securely holds large workpiece diameters. A heat exchanger in the control cabinet and the hydraulic unit with oil cooler ensure thermal balance. A chip conveyor rounds out the equipment package.

  • Siemens 828 D Control
  • Long boom for inside machining
  • High drive power and a wide speed range
  • 4-jaw independent chuck with large diameter
  • Automatic 4-station tool changer
Working Area
Turning diameter, vertical 49 in
Machining height (max.) 39 in
Workpiece weight (max.) 7040 lbs
Travels
Travel X-axis 27.6 in
Travel Z-axis 26 in
Travel Z1-axis 26 in
Headstock
Speed range 0.5 rpm - 250 rpm
Spindle torque (max.) 16964 ft.lb.
Lathe chuck diameter 39 in
Rapid Feed
Rapid feed X-axis 157.48 in/min
Rapid feed Z-axis 157.48 in/min
Feed
Feed W-axis 17 in/min
Tool Head
Number of tool stations 4 positions
Tool-change time tool/tool 10 sec
Tool weight max. 55 lbs
Accuracies
Positioning accuracies 0.0012 in
Repeatability 0.00059 in
Drive Capacity
Motor rating main drive 40.2 Hp
Motor rating feed 3 Hp
Measures and Weights
Overall dimensions (length x width x height)-height 209 in x 150 in x 166 in
Weight 20900 lbs

Highlights

  • 4-step precision gears and infinitely variable 60 Hp main motor - for high torque (up to 29,500 ft/lbs) across the entire speed range
  • Includes the proven Siemens 828 D SL Control
  • Hydraulic clamping of cross traverse
  • Easy access to the 4-jaw face chuck allows easy clamping of heavy and complex workpieces

Machine Design

  • Heat-treated machine bed made of premium HT250 cast-iron
  • All guideways are lubricated reliably via a central lubrication system
  • Large, induction-hardened and precision-ground rectangular guides with synthetic coating ensure optimum sliding and damping properties
  • High-precision preloaded ball screws from renowned manufacturers on all axes

Tool Changer

  • Automatic 4-station tool changer
  • Max. tool weight 55 lbs
  • Chip conveyor with chip carriage and automatic 4-station tool changes complete this extensive standard equipment

Siemens 828 D control SKU:
  • The SINUMERIK 828D is perfectly suited for equipping horizontal and vertical turning centers with one machining channel and up to eight CNC measuring circuits. Apart from the main spindle and the geometry axes (X axis and Z axis), other machine units can be operated as well:
  • CNC controlled turret
  • Tailstock axis (with travel to fixed stop)
  • Driven tools and C axis mode for end face and peripheral surface machining
  • Y axis (orthogonal or oblique)
  • Sub-spindle with synchronous spindle function for complete machining of workpieces
  • With the SINUMERIK 828D you get a CNC system that is customized for the application in lathes and milling machines. CNC, PLC, user interface and axis control for six CNC measuring circuits are all combined within a single compact unit. The control provides comprehensive CNC functions such as support of sub-spindle machining and powerful tool management capability.
  • The SINUMERIK 828D offers comprehensive turning capabilities for lathes, plus drilling and milling operations for face machining and peripheral surface machining of workpieces. The performance of the controller and the new motion control allow you to achieve mirror finish surfaces with minimum machining time. The SINUMERIK 828D has eliminated all unnecessary functionalities; this is particularly noticeable in the graphical user interface. This means it is optimally suitable for use in the workshop. Operation, programming and maintenance can quickly be mastered with only minimal training requirements.
  • Optimum operator guidance via CNC input screens with animated input masks
  • USB, CF, and Ethernet interfaces are located on the front panel for quick and easy data transfers
  • Integrated wireless modem for optimum process monitoring via mobile phone
Siemens 828 D control
Siemens 828 D control SKU:
  • The SINUMERIK 828D is perfectly suited for equipping horizontal and vertical turning centers with one machining channel and up to eight CNC measuring circuits. Apart from the main spindle and the geometry axes (X axis and Z axis), other machine units can be operated as well:
  • CNC controlled turret
  • Tailstock axis (with travel to fixed stop)
  • Driven tools and C axis mode for end face and peripheral surface machining
  • Y axis (orthogonal or oblique)
  • Sub-spindle with synchronous spindle function for complete machining of workpieces
  • With the SINUMERIK 828D you get a CNC system that is customized for the application in lathes and milling machines. CNC, PLC, user interface and axis control for six CNC measuring circuits are all combined within a single compact unit. The control provides comprehensive CNC functions such as support of sub-spindle machining and powerful tool management capability.
  • The SINUMERIK 828D offers comprehensive turning capabilities for lathes, plus drilling and milling operations for face machining and peripheral surface machining of workpieces. The performance of the controller and the new motion control allow you to achieve mirror finish surfaces with minimum machining time. The SINUMERIK 828D has eliminated all unnecessary functionalities; this is particularly noticeable in the graphical user interface. This means it is optimally suitable for use in the workshop. Operation, programming and maintenance can quickly be mastered with only minimal training requirements.
  • Optimum operator guidance via CNC input screens with animated input masks
  • USB, CF, and Ethernet interfaces are located on the front panel for quick and easy data transfers
  • Integrated wireless modem for optimum process monitoring via mobile phone
Electronic hand-wheel
Electronic hand-wheel SKU:
4-jaw face chuck
4-jaw face chuck SKU:
Automatic 4-station tool changer
Automatic 4-station tool changer SKU:
Coolant system
Coolant system SKU:
Control cabinet with heat-exchanger
Control cabinet with heat-exchanger SKU:
Signal lamp
Signal lamp SKU:
Chip conveyor
Chip conveyor SKU:
Hydraulic unit
Hydraulic unit SKU:
Oil cooler
Oil cooler SKU:
Workspace lighting
Workspace lighting SKU:
Operating tools
Operating tools SKU:
Operator instructions
Operator instructions SKU:

Siemens 828 D control

  • The SINUMERIK 828D is perfectly suited for equipping horizontal and vertical turning centers with one machining channel and up to eight CNC measuring circuits. Apart from the main spindle and the geometry axes (X axis and Z axis), other machine units can be operated as well:
  • CNC controlled turret
  • Tailstock axis (with travel to fixed stop)
  • Driven tools and C axis mode for end face and peripheral surface machining
  • Y axis (orthogonal or oblique)
  • Sub-spindle with synchronous spindle function for complete machining of workpieces
  • With the SINUMERIK 828D you get a CNC system that is customized for the application in lathes and milling machines. CNC, PLC, user interface and axis control for six CNC measuring circuits are all combined within a single compact unit. The control provides comprehensive CNC functions such as support of sub-spindle machining and powerful tool management capability.
  • The SINUMERIK 828D offers comprehensive turning capabilities for lathes, plus drilling and milling operations for face machining and peripheral surface machining of workpieces. The performance of the controller and the new motion control allow you to achieve mirror finish surfaces with minimum machining time. The SINUMERIK 828D has eliminated all unnecessary functionalities; this is particularly noticeable in the graphical user interface. This means it is optimally suitable for use in the workshop. Operation, programming and maintenance can quickly be mastered with only minimal training requirements.
  • Optimum operator guidance via CNC input screens with animated input masks
  • USB, CF, and Ethernet interfaces are located on the front panel for quick and easy data transfers
  • Integrated wireless modem for optimum process monitoring via mobile phone
