KRM 12/5.0

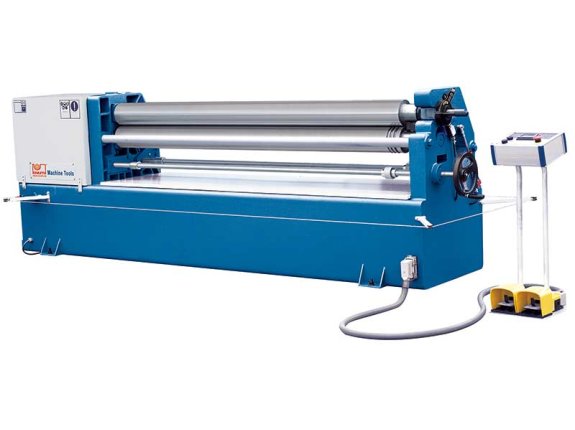

KRM 10/4.0 shown including optional equipment (motorized rear roll adjustment)

KRM 12/5.0

KRM 12/5.0

SKU : 131964

KRM is a series of heavier medium capacity round bending machines for workpieces up to 2000 mm (78.74 in.) in length. The machines have a solid, closed machine frame and you can adjust the rear roller manually by hand or optionally with a motor. With special features such as conical bending and pre-bending, the models in this series are suitable for a wide range of applications in individual production.

Working Area
Working length 49 in
Plate thickness (max.) 0.22 in
Max. plate thickness for bending 0.2 in
Bending diameter (min.) 8 in
Roll diameter 6 in
Drive Capacity
Motor rating main drive 3 Hp
Measures and Weights
Overall dimensions (length x width x height)-height 80 in x 36 in x 48 in
Weight 3003 lbs

  • Hardened rollers, suitable for stainless steel
  • Motor driven left/right direction, operated with foot switch
  • Hand wheel for rear roll feed
  • Quick adjusting rolls (motor-driven, option)
  • Standard series wire core groove
  • Top roll swings out across cam lock
  • Supplied with conical bending feature

Hardened rollers SKU:

Facilite the rolling of harder materials like stainless steel

Hardened rollers
Hardened rollers SKU:

Facilite the rolling of harder materials like stainless steel

Conical bending feature
Conical bending feature SKU:
  • Conical rolling is achieved by decoupling the shaft connecting the rollers
  • The capacity of the machine is lower when performing conical bendings

Resources & Downloads

  • KRM 12/5.0 Brochure.pdf (0.29MB)
